2014 T6 Aluminum Alloy
2014-T6 is a high-strength aluminum copper alloy from the 2000 series, which reaches the T6 condition (solution heat treatment and artificial aging). It is highly regarded for its excellent strength-to-weight ratio, machinability, and performance in high-stress applications, especially in the aerospace and defense industries.
2014 T6 aluminum is a high-strength, precipitation-hardened alloy, and the T6 condition material is treated to achieve enhanced mechanical properties. This treatment provides the material with excellent strength and hardness, making it an ideal choice for demanding aerospace and high-performance structural applications. However, its corrosion resistance is relatively poor, so it is typically provided in cladded form or undergoes surface treatments to prevent environmental corrosion.
The T6 condition of 2014 aluminum alloy is achieved through solution heat treatment and artificial aging processes to reach standard mechanical properties. It is one of the commonly used conditions of this alloy, combining high strength and hardness.

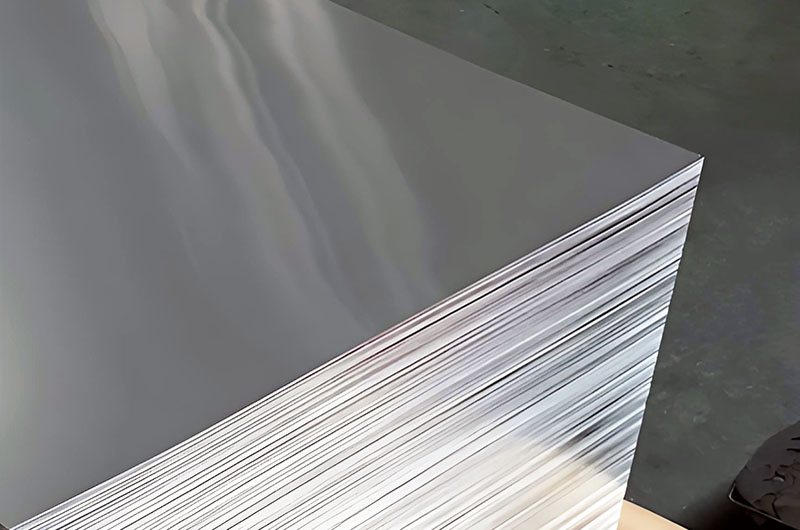

2014-T6 Aluminum Plate Specifications
| Category | Specifications and Description |
| Availability | Forms: Plates, sheets, bars, forgings, extrusions |
| Thickness (plates): 6 mm - 150 mm (commonly stocked) | |
| Dimensions: Customizable, standard width up to 1.5 m | |
| Surface Treatment | Anodizing, painting or powder coating, aluminum cladding (Alclad) to enhance corrosion resistance |
| Standards | ASTM B209:2014 Aluminum plate/sheet standard |
| AMS 4120: Aerospace material standard | |
| Condition | T6: Peak strength after artificial aging |
| T651: Stress relieved by stretching to improve dimensional stability | |
| Certification | MIL-A-22771, ASTM B209, AMS 4120 |
| Product Quality Testing | Testing Methods: Tensile testing, hardness testing, ultrasonic testing (for internal defects) |
2014 T6 Aluminum Alloy Properties
- High strength-to-weight ratio: 2014 T6 aluminum alloy is ideal for aerospace and structural components.
- Heat treatable: The T6 condition maximizes strength through aging.
- Machinability: Excellent (produces clean chips; rated 9/10 among aluminum alloys).
- Weldability: Poor (prone to cracking; use TIG/MIG with 4043 or 4145 filler).
- Corrosion resistance: Low; requires aluminum cladding or anodizing in harsh environments.
- Stress corrosion cracking (SCC): Susceptible in thick sections or high-stress environments.
Comparison of 2014 T6 Aluminum with Similar Alloys
- 2014 vs. 2024-T6: Similar strength, but 2014 has better machinability.
- 2014-T6 vs. 7075-T6: 7075 (zinc-based) has higher strength but lower toughness; 2014 has better fatigue resistance.
- 2014-T6 vs. 6061-T6: 6061 has better corrosion resistance but lower strength.
| Comparison Item | 2014-T6 Aluminum Alloy | 2024-T6 Aluminum Alloy |
| Strength and Machinability | 2014-T6 has good machinability, suitable for various machining methods. | 2024-T6 has similar tensile strength to 2014-T6 but is more difficult to machine, with more tool wear, making it harder to process. |
| Strength and Machinability Summary | Similar strength, but 2014-T6 has better machinability. | While 2024-T6 has similar strength, its machinability is poor, requiring more machining time and resources. |
| Comparison Item | 2014-T6 Aluminum Alloy | 7075-T6 Aluminum Alloy |
| Strength and Toughness | 2014-T6 has higher strength, suitable for structural components. It has good fatigue resistance, making it suitable for applications subjected to cyclic loads over extended periods. | 7075-T6 has higher strength but lower toughness, making it more brittle. It is suitable for applications requiring extremely high strength. |
| Fatigue Resistance and Brittleness | 2014-T6 has better fatigue resistance than 7075-T6 and can be used under cyclic loads for a long time, making it suitable for environments with high-frequency stress. | 7075-T6 has higher strength but poor fatigue resistance and low toughness. It may experience brittle failure under high-frequency stress. |
| Strength and Toughness Summary | 2014-T6 is suitable for applications requiring fatigue resistance and high strength, while 7075-T6 is more suitable for extreme high-strength applications that do not demand much toughness. | 7075-T6 is suitable for applications requiring extremely high strength, but its brittleness and toughness are poor. |
| Comparison Item | 2014-T6 Aluminum Alloy | 6061-T6 Aluminum Alloy |
| Strength and Corrosion Resistance | 2014-T6 performs excellently in strength but has poor corrosion resistance. It usually requires anodizing or an aluminum cladding layer for protection. | 6061-T6 has lower tensile strength but excellent corrosion resistance, making it suitable for marine environments and high humidity conditions, with minimal surface treatment needed. |
| Corrosion Resistance Summary | 2014-T6 is suitable for environments where high strength is required, but corrosion resistance is not critical. | 6061-T6 is more suitable for environments where corrosion resistance is critical, especially in marine or extreme climate conditions. |
2014 T6 Aluminum Alloy Mechanical Property
| Mechanical Property | 2014-T6 Aluminum |
| Brinell Hardness | 140 |
| Elastic (Young's, Tensile) Modulus, GPa | 72 |
| Elongation at Break, % | 6.8 |
| Fatigue Strength, MPa | 130 |
| Poisson's Ratio | 0.33 |
| Shear Modulus, GPa | 27 |
| Shear Strength, MPa | 290 |
| Tensile Strength: Ultimate (UTS), MPa | 490 |
| Tensile Strength: Yield (Proof), MPa | 420 |
2014 T6 Aluminum Alloy Chemical Composition
The main components of 2014 aluminum alloy are aluminum (Al) and copper (Cu), with small amounts of manganese (Mn), magnesium (Mg), and silicon (Si). The synergistic effects of these elements give the alloy excellent strength and fatigue resistance.
| Element | Composition Range or Maximum |
| Aluminum (Al) | Remainder |
| Chromium (Cr) | Max 0.1% |
| Copper (Cu) | 3.9% - 5% |
| Iron (Fe) | Max 0.7% |
| Magnesium (Mg) | 0.2% - 0.8% |
| Manganese (Mn) | 0.4% - 1.2% |
| Other Elements (Each) | Max 0.05% |
| Other Elements (Total) | Max 0.15% |
| Silicon (Si) | 0.5% - 1.2% |
| Titanium (Ti) | Max 0.15% |
| Titanium + Zinc (Ti + Zn) | Max 0.2% |
| Zinc (Zn) | Max 0.25% |
2014 Aluminum Heat Treatment Process (T6 Temper)
Solution Heat Treatment
The 2014 alloy is heated to a specific temperature to fully dissolve the alloying elements into the matrix, followed by rapid quenching to maintain uniform distribution of the elements within the matrix.
Artificial Aging
Artificial aging is performed under controlled temperature conditions to promote the formation of precipitates, thereby enhancing the material's strength and hardness.
Through these processes, the 2014-T6 temper achieves exceptional mechanical properties, including high hardness and tensile strength.
2014 T6 Aluminum Machinability
Machinability
2014-T6 has excellent machinability, suitable for milling, drilling, and turning processes. Its high hardness and strength contribute to stability during machining operations.
Weldability
Due to its high copper content, weldability is limited, and special post-weld heat treatment is required to restore strength.
Surface Treatment
The 2014 T6 Aluminum Alloy can undergo anodizing and coating processes to enhance corrosion resistance and aesthetic appeal.
Applications of 2014 T6 Aluminum Alloy
Due to its high strength and excellent fatigue performance, 2014-T6 aluminum is commonly used in aerospace components (such as fuselage frames, wing structures, and landing gear parts) and high-performance automotive components. Its excellent machinability makes it the preferred choice for precision parts. However, the alloy's relatively poor corrosion resistance requires additional surface treatment (such as anodizing or cladding) when used in corrosive environments. Additionally, its weldability is limited due to cracking, so care must be taken during joining operations.
- Aerospace: Wing ribs, fuselage frames, landing gear parts.
- Military: Armored vehicles, missile components, ordnance.
- Automotive: High-performance pistons, suspension components.
- Industrial: Heavy forging, hydraulic systems, tool plates.
2014 T6 aluminum combines high strength, high hardness, and excellent machinability, with a good microstructure controlled through solution heat treatment and artificial aging processes.
2014 T6 Aluminum Alloy for Aerospace
Aircraft structural components are manufactured using 2014 T6 aluminum alloy. Its high strength and excellent fatigue resistance make it suitable for critical load-bearing parts.
Wing frameworks employ 2014 T6 aluminum alloy for its strength and heat resistance, ensuring stability and safety in high-stress environments.
Skin panels use 2014 T6 aluminum alloy, offering lightweight and durable protection with excellent corrosion resistance and machinability.
High-strength fasteners are made of 2014 T6 aluminum alloy, providing robust connections and long-term stability between aerospace components.
2014 T6 Aluminum Alloy for Automotive Industry
Engine components utilize 2014 T6 aluminum alloy, meeting the demands of high-performance engines with its heat resistance and strength.
Chassis components are manufactured from 2014 T6 aluminum alloy, offering lightweight properties and high strength to improve vehicle stability and handling.
Suspension system parts adopt 2014 T6 aluminum alloy, leveraging its superior fatigue resistance to enhance durability and reliability.
2014 T6 Aluminum Alloy for Industrial Equipment
High-load mechanical parts are made from 2014 T6 aluminum alloy, ensuring stability and performance under heavy-load conditions with its high strength and wear resistance.
Molds use 2014 T6 aluminum alloy, meeting the precision manufacturing requirements due to its machinability and heat resistance.
Tools are crafted from 2014 T6 aluminum alloy, offering the strength and durability needed to maintain stable performance in high-pressure work environments.
2014-T6 aluminum alloy is a high-strength, high-hardness material widely used in applications requiring superior structural and machining performance. Although its ductility and corrosion resistance are slightly lower, its exceptional strength and reliability make it a favored choice in aerospace and high-performance industrial equipment.
Limitations of 2014 T6 Aluminum
- Poor corrosion resistance in marine or acidic environments.
- Not suitable for welding; typically requires post-weld heat treatment.
- Higher cost compared to 6000 series alloys due to high copper content.
2014-T6 aluminum is the preferred choice for high-strength, lightweight applications where machinability and fatigue resistance are crucial. Its limitations in corrosion resistance and weldability can be mitigated with protective treatments and careful design.
