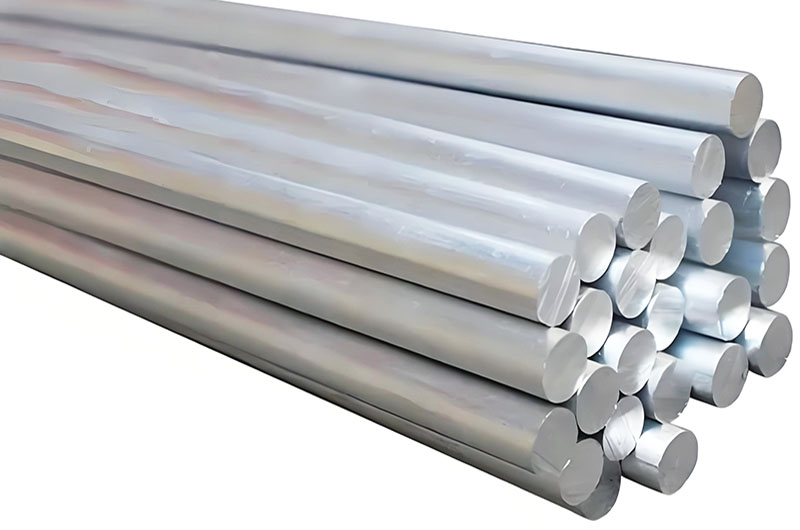

7068 T6511 Aluminum
7068-T6511 is a high-strength aluminum alloy, belonging to the 7xxx series (Al-Zn-Mg-Cu), known for its excellent strength-to-weight ratio. The T6511 temper indicates that it has undergone solution heat treatment, stress relief through stretching (with permanent deformation of about 1-3%), and artificial aging. This process enhances mechanical properties and dimensional stability.
7068 T6511 aluminum alloy is one of the strongest aluminum alloys available today. Its balanced chemical composition and advanced heat treatment processes not only meet the mechanical and thermal properties of traditional aluminum alloys (such as 7075), but often exceed their mechanical and thermal performance.
7068 T6511 is known for its outstanding mechanical properties, with tensile strength comparable to some steels, while retaining the lightweight advantage of aluminum. It was originally developed for military applications, and its exceptional strength and corrosion resistance make it the material of choice for aerospace, automotive, defense, and high-performance recreational products.
7068 T6511 Aluminum Chemical Composition
The alloy's chemical composition is carefully balanced to achieve high strength and durability. The typical weight percentages include:
- Aluminum (Al): ~85.4%
- Zinc (Zn): 7.3 – 8.3%
- Magnesium (Mg): 2.2 – 3.0%
- Copper (Cu): 1.6 – 2.4%
- Zirconium (Zr): 0.05 – 0.15%
It also contains small amounts of silicon, iron, manganese, chromium, and titanium, which can fine-tune the alloy’s properties. This composition complies with standards such as AMS 4331, which includes chemical and mechanical properties, and heat treatment procedures like AMS 2772.
Mechanical Properties of 7068-T6511 Aluminum
| Property | Value |
| Tensile Strength | ~710 MPa (103,000 psi) |
| Yield Strength | ~655 MPa (95,000 psi) |
| Elongation | 8–10% (in 50 mm) |
| Hardness | ~150 HB |
| Fatigue Strength | High, suitable for cyclic loading |
Physical Properties of 7068-T6511 Aluminum
| Property | Value |
| Density | 2.8 g/cm³ |
| Melting Range | 475–635°C |
| Thermal Conductivity | 130 W/m·K |
| Electrical Conductivity | 40% IACS |
| Corrosion Resistance | Moderate (Anodizing or coatings recommended for harsh environments) |
7068 T6511 Aluminum Applications
| Application | Description |
| Aerospace | 7068-T6511 aluminum alloy is widely used in the aerospace industry, particularly for aircraft fuselage components, wing structures, and fuselage frames. These parts need to have both high strength and low weight to ensure the structural integrity of the aircraft during high-speed flight. The exceptional mechanical properties of 7068-T6511 aluminum alloy, especially its high tensile strength and fatigue resistance, make it an ideal choice in the aerospace sector. By using this material, the overall weight of the aircraft is reduced, thereby improving fuel efficiency and enhancing flight performance. |
| Automotive | In the high-performance automotive sector, 7068-T6511 aluminum alloy is used to manufacture key components such as connecting rods, valve bodies, and shock absorbers. These components need to withstand high loads and extreme operating conditions. 7068-T6511 aluminum alloy, with its extremely high strength, good corrosion resistance, and lighter weight, meets the requirements for use in high-temperature, high-pressure environments, providing greater durability and longer service life, while helping reduce vehicle weight, improving fuel efficiency, and enhancing power performance. |
| Defense/Military | In the defense and military sectors, 7068-T6511 aluminum alloy is used to manufacture parts that need to withstand extreme pressure and harsh environments. These components typically require extremely high strength and stability in high-temperature, humid, or corrosive environments. The outstanding tensile strength and corrosion resistance of 7068-T6511 make it an ideal material for manufacturing aircraft parts, military equipment, ammunition casings, and other critical components. These parts maintain excellent performance and reliability under various extreme conditions, ensuring the smooth execution of military operations. |
| Recreational Equipment | 7068-T6511 aluminum alloy is also widely used in the manufacture of recreational equipment, particularly in the production of high-strength, lightweight components such as bicycles, climbing gear, and other sporting equipment. These devices are often subjected to frequent impacts and high-intensity use, and the high strength and low weight characteristics of 7068-T6511 make it an ideal choice. By using this material, manufacturers can increase the durability and service life of the equipment while maintaining a lighter weight, enhancing the convenience and comfort of the equipment. |
| Industrial | In the industrial sector, 7068-T6511 aluminum alloy is used to manufacture various heavy-duty fasteners and hydraulic components. These parts require extremely high strength, wear resistance, and long-term stability. The high strength and good machinability of 7068-T6511 aluminum alloy make it highly popular for these applications. Its high fatigue resistance and excellent corrosion resistance allow it to maintain outstanding performance under extreme working conditions, especially in hydraulic systems and high-load machinery. |
7068 T6511 Aluminum Comparison
| Comparison Item | Description |
| Comparison with 7075-T6511 Aluminum Alloy | Compared to 7075-T6511 aluminum alloy, 7068 T6511 has a higher strength, approximately 10-15% stronger. This increased strength allows 7068 T6511 to withstand greater mechanical loads, especially in applications requiring high load capacity and strength, offering superior performance. However, 7068 T6511's corrosion resistance is slightly lower than that of 7075-T6511. 7075-T6511 performs better in corrosion resistance, making it more suitable for harsher environmental conditions. Therefore, for applications where high corrosion resistance is a priority, 7075 T6511 remains the preferred choice. |
| Comparison with 2024-T3 Aluminum Alloy | Compared to 2024-T3 aluminum alloy, 7068 T6511 aluminum alloy performs better in strength and fatigue resistance. 7068 T6511 not only has higher tensile strength and yield strength than 2024-T3, but also provides better support in terms of fatigue resistance, making it more suitable for applications that endure long-term stress and repeated loads. However, 7068 T6511 has poorer formability. In contrast, 2024-T3 has better formability, making it more suitable for complex shapes and manufacturing processes. Therefore, in applications requiring higher formability, 2024-T3 still has certain advantages. |
7068 T6511 Aluminum Standards and Specifications
- ASTM B209: Covers sheet/plate forms.
- AMS 4331: Aerospace material standard.
- MIL-DTL-46027: Military applications.
7068 T6511 Aluminum Manufacturing and Processing
- Machinability: Good machinability with the appropriate tools (hard alloy tools recommended).
- Welding: Challenging due to crack sensitivity; friction stir welding is preferred.
- Heat Treatment: Requires precise aging to avoid stress corrosion cracking.
- Formability: Limited ductility; best formed in the annealed state.
7068-T6511 is a high-quality aluminum alloy suitable for extreme strength requirements in aerospace, military, and automotive sectors. While it sacrifices some corrosion resistance and formability compared to other alloys, its unparalleled mechanical properties make it an ideal choice for critical high-stress applications. Proper manufacturing techniques and protective treatments are crucial to maximizing performance.
