What is the difference between 2014 and 2024 aluminum?
Both 2014 and 2024 aluminum alloys belong to the 2000 series (aluminum-copper alloys), with many similarities. However, there are subtle but important differences in composition, processing, and performance, making each better suited for specific applications.
Similarities between 2014 and 2024 Aluminum
Both 2014 and 2024 aluminum alloys are high-strength, heat-treatable aluminum-copper alloys, specifically designed for demanding aerospace applications. Their basic composition consists of approximately 93.5% aluminum, with copper as the primary alloying element.
2014 and 2024 aluminum alloys are both high-strength aluminum-copper alloys with excellent mechanical properties and heat treatability, widely used in aerospace, military, and high-performance engineering fields. Their main differences lie in the specific composition ratios, subtle variations in strength and toughness, which make them more suitable for different application scenarios.
Differences between 2014 and 2024 Aluminum
2024 aluminum alloy, with its higher magnesium content, is suitable for high-strength and fatigue-resistant extrusions, such as aircraft skin and wing structures. On the other hand, 2014 aluminum alloy, with a higher copper content, is more suitable for high-load forged components such as landing gear, aircraft engine parts, and heavy support structures.
| Comparison Item | 2014 Aluminum Alloy | 2024 Aluminum Alloy |

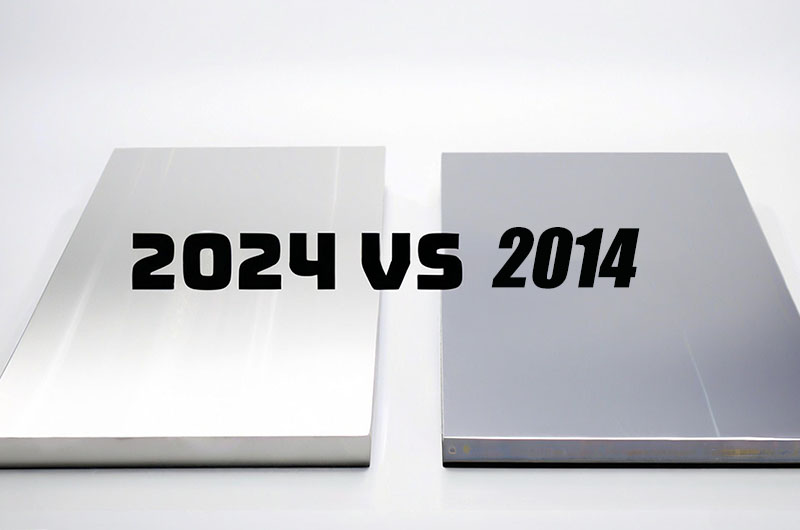

| Image |
 |
 |
| Composition Differences | 2014 aluminum alloy has slightly higher copper content, and also has different amounts of manganese, silicon, and iron, giving it superior strength and heat resistance. For example, 2014 aerospace forgings (such as aircraft landing gear support components) take advantage of the high copper content for greater strength, while the optimized ratios of manganese and silicon improve its machinability and creep resistance, making it suitable for high-temperature, high-load environments. | 2024 aluminum alloy has a higher magnesium content, which provides superior strength and fatigue resistance after aging. For example, 2024-T3 aircraft skin uses this higher magnesium content alloy to enhance tensile strength and fatigue life, allowing it to withstand continuous loads during flight and making it suitable for aircraft skin and load-bearing structural components. |
| Processing Methods | 2014 aluminum alloy is more suitable for forging, with excellent hot-working properties that allow for the production of high-strength, high-toughness complex forged parts. For example, 2014-T6 aerospace forged beams are formed through hot-forging processes to create high-strength fuselage frame structures, with outstanding machinability making it suitable for aircraft main landing gear, load-bearing structures, and connecting components. | 2024 aluminum alloy is typically processed using extrusion and cladding techniques to improve corrosion resistance. For example, 2024-T3 Alclad sheet used in aircraft skin applications is coated with a layer of high-purity aluminum to enhance its corrosion resistance, thus meeting the long-term reliability requirements of aircraft. It is also suitable for fuselage skin, aircraft outer shells, and similar applications. |
| Mechanical Properties | 2014 aluminum alloy has better overall toughness and higher shear strength, making it suitable for components requiring high load-bearing capacity and impact resistance. For example, 2014-T6 aerospace forged gears require high shear strength and wear resistance, making them more durable in high-speed operating aviation transmission systems, and suitable for aircraft landing gear and engine components. | 2024 aluminum alloy’s composition and processing methods provide higher tensile strength and excellent performance under long-term dynamic loads. For example, 2024-T851 aerospace structural profiles exhibit superior yield strength and fatigue performance, performing excellently in high-stress components such as aircraft wing skeletons and central wing boxes. |
2014 and 2024 Aluminum Chemical Composition
2024 Aluminum
- Typical composition: about 93.5% aluminum, 3.8–4.9% copper, 1.2–1.8% magnesium, and 0.3–0.9% manganese, with small amounts of silicon, chromium, and other elements.
- The higher magnesium content helps achieve excellent precipitation hardening and fatigue resistance.
2014 Aluminum
- Aluminum content is also about 93.5%, but it typically has slightly higher copper content (3.9–5.0%) and lower magnesium content (0.2–0.8%).
- It generally contains more manganese (0.4–1.2%) and a wider range of silicon (usually 0.5–1.2%) and iron (up to about 0.7%), which subtly affect strength and hardness.
- These trace element differences lead to slightly different mechanical behavior compared to 2024.
2014 and 2024 Aluminum Processing and Form
2024 Aluminum
- Most commonly found in extruded, composite (Alclad) sheet and plate forms.
- The cladding layer helps protect its relatively poor corrosion resistance, making it ideal for aircraft skin panels and fuselage structures.
2014 Aluminum
- Typically used for forged components.
- Forging gives it very high strength and toughness, making it ideal for critical structural components such as landing gear and hydraulic cylinders.
2014 and 2024 Aluminum Applications
2024 Aluminum
Widely used in aircraft structures (especially wing and fuselage skins), where high strength-to-weight ratio and fatigue resistance are critical.
2014 Aluminum
More commonly used in forged aerospace components, such as landing gear and hydraulic parts, where extreme strength and impact resistance are crucial.
2014 and 2024 Aluminum Strength
Due to its copper content, 2014 aluminum exhibits excellent strength. This alloy is known for its high tensile strength, making it the preferred choice for applications requiring structural integrity (such as aircraft components). This alloy is also easily age-hardened. 2024 aluminum is renowned for its outstanding tensile strength, making it the material of choice for critical structural components in aerospace applications.
2014 and 2024 Aluminum Heat Treatment
| Alloy Type | Heat Treatment Process | Effects and Properties |
| 2014 Aluminum Alloy | It has good heat treatability and can improve its mechanical properties through solution treatment and artificial aging (such as T6, T651 states). | The heat treatment process enhances the strength and hardness of 2014 aluminum, making it perform excellently in high-load applications. Additionally, it maintains good machinability and wear resistance after heat treatment, making it widely used in critical structural components in aerospace and high-performance industries. |
| 2024 Aluminum Alloy | It responds well to heat treatment, with common states including T3 and T851. Solution treatment and aging optimize the microstructure, improving tensile and fatigue strength. | After heat treatment, 2024 aluminum exhibits extremely high strength, especially in the T3 and T851 states, where its tensile strength and fatigue resistance are outstanding. Furthermore, this alloy retains high strength in high-temperature environments, making it suitable for long-term thermal stress applications in aerospace, such as aircraft skin and fuselage frames. |
2014 and 2024 Aluminum Weldability
While 2014 aluminum is generally weldable, special care must be taken to avoid cracking during welding. Proper techniques and procedures are essential to ensure the integrity of the weld joint. Similarly, 2024 aluminum is weldable but requires particular attention to prevent cracking during welding. Typically, appropriate welding techniques and post-weld heat treatment are used to ensure optimal performance.
2014 and 2024 Aluminum Fatigue Resistance
Fatigue resistance is a critical factor in the aerospace industry, as aviation often involves repeated stress cycles. It helps extend the lifespan of aircraft components and improves their reliability. 2014 aluminum generally has good fatigue strength, making it suitable for applications subjected to cyclic loads. 2024 aluminum has exceptional fatigue strength, which is one of its most notable characteristics. Its high strength, coupled with good fatigue performance, makes it the material of choice for structural components in aerospace applications.
| Alloy Type | Fatigue Resistance | Effects and Properties |
| 2014 Aluminum Alloy | It has good fatigue resistance and can withstand cyclic loads and repeated stress. | The fatigue resistance of 2014 aluminum is suitable for applications requiring fatigue performance, such as aircraft components and structural frames. Although its fatigue resistance is slightly inferior to 2024 aluminum, it is still widely used in aerospace components, such as wing beams and landing gear assemblies, extending the lifespan of these critical parts. |
| 2024 Aluminum Alloy | Known for its excellent fatigue resistance, it can withstand prolonged cyclic loads and repeated stress. | The high strength and excellent fatigue performance of 2024 aluminum make it the material of choice for structural components in aerospace. This alloy is ideal for parts such as fuselages, wings, and skin, where high durability is required, greatly improving the reliability and service life of components, especially in long-term applications subjected to repeated stresses. |
2014 and 2024 Aluminum Cost
Another factor to consider is the cost difference between 2014 and 2024 aluminum. 2024 aluminum is generally more expensive than 2014 aluminum because it offers higher strength, better fatigue resistance, and greater fracture toughness. However, it is still more affordable compared to other high-strength aluminum alloys such as 7075 or 7475.
| Aluminum Alloy Type | Cost Description |
| 2014 Aluminum | 2014 aluminum alloy is relatively affordable, primarily due to its simpler manufacturing process and the lower cost of its alloying elements and heat treatment processes. While it has high strength and is particularly suitable for aerospace and transportation sectors, its manufacturing cost is lower compared to other high-strength aluminum alloys. Therefore, 2014 aluminum is an ideal choice for cost-sensitive applications. |
| 2024 Aluminum | 2024 aluminum alloy typically costs more than 2014 aluminum due to its superior performance in strength, fatigue resistance, and fracture toughness. The higher manufacturing cost is attributed to these excellent properties, especially for aerospace and military applications that require the material to withstand extreme loads and long-term use. However, 2024 aluminum remains competitively priced compared to other high-strength aluminum alloys like 7075 or 7475, making it a highly competitive option for high-performance applications. |
