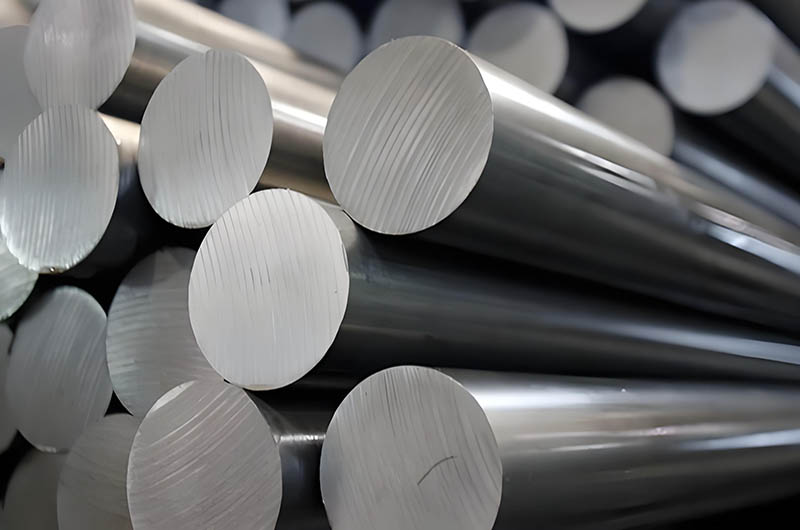

2017-T4 Aluminum Round Bar
2017-T4 is a type of 2000 series aluminum alloy, primarily based on aluminum and copper. In the T4 temper, the alloy undergoes solution heat treatment and natural aging. This treatment provides excellent ductility (allowing for high machinability) and sufficient strength for demanding applications. It is widely used in the aerospace industry, automatic screw machine work, and other high-stress environments.
- Temper (T4) process: Solution heat treatment (heated to ~500°C, then quenched) and natural aging at room temperature.
- 2017-T4 Aluminum provides a balance of strength and ductility. The strength is lower than T6 (artificial aging), but its formability and machinability are better.
- Machinability and finishing: The T4 temper not only offers high ductility but also facilitates excellent machining, drilling, and forming operations. Protective surface treatments can be applied to enhance corrosion resistance in harsh environments.
In summary, the 2017-T4 aluminum round bar is a high-performance material that combines:
- Carefully controlled chemical composition (rich in copper and magnesium) to improve strength.
- T4 temper provides high ductility and ease of machining. Mechanical properties suitable for critical structures and high-stress applications.
The combination of these characteristics makes 2017-T4 an excellent choice for applications where both lightweight design and mechanical strength are crucial.
Haomei 2017-T4 Aluminum Round Bar Specifications
Haomei Aluminum offers a wide range of 2017-T4 Aluminum Round Bar sizes that meet international standards. Consistent quality in both large and small batches, with competitive pricing.
- Shapes and sizes: Available in round bar form, with a wide range of diameters – from small precision bars to large bars – making it suitable for both standard and custom applications.
- Standards and certifications: Typically manufactured to standards such as ASTM B211, AMS 4118, and QQ-A-225/5, ensuring consistent quality and performance.
- ASTM B211: Covers aluminum alloy bars, rods, and wire (including 2017 aluminum).
- Diameter range from 6 mm to 150 mm; please refer to stock for specific details.
| Material | Aluminum |
| Shape | Round |
| Series | 2017-T4 |
| Grade | 2017 |
| Temper | T4 |
| Diameter | Typically 6 mm (1/4 inch) to 150 mm (6 inches) |
| ASTM Specifications | AMS 4118, QQ-A-225/5, ASTM B211, UNS A92017 |
| Surface Treatment | Rolled, polished, or coated (e.g., chromate). |
| Ultimate Strength | 62 kpsi |
| Yield Strength | 40 kpsi |
| Density | 0.101 lbs/in³ |

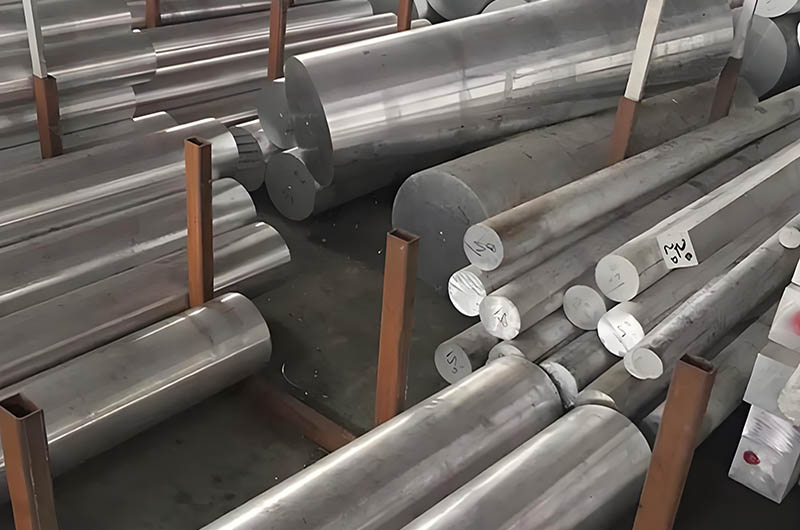

Haomei 2017-T4 Aluminum Round Bar Inventory List
| Size in | Lbs. | Est. Lbs. |
| Inches | Per Ft. | Per 12′ Bar |
| 5/32" 2017 T4 Aluminum Round Bar | 0.0233 | 0.2796 |
| 3/16" 2017 T4 Aluminum Round Bar | 0.0335 | 0.402 |
| 1/4" 2017 T4 Aluminum Round Bar | 0.0595 | 0.714 |
| 5/16" 2017 T4 Aluminum Round Bar | 0.093 | 1.116 |
| 3/8" 2017 T4 Aluminum Round Bar | 0.1339 | 1.607 |
| 7/16" 2017 T4 Aluminum Round Bar | 0.1822 | 2.186 |
| 1/2" 2017 T4 Aluminum Round Bar | 0.238 | 2.856 |
| 9/16" 2017 T4 Aluminum Round Bar | 0.3012 | 3.614 |
| 5/8" 2017 T4 Aluminum Round Bar | 0.3718 | 4.462 |
| 3/4" 2017 T4 Aluminum Round Bar | 0.5354 | 6.425 |
| 13/16" 2017 T4 Aluminum Round Bar | 0.6284 | 7.541 |
| 7/8" 2017 T4 Aluminum Round Bar | 0.7288 | 8.746 |
| 15/16" 2017 T4 Aluminum Round Bar | 0.8366 | 10.04 |
| 1" 2017 T4 Aluminum Round Bar | 0.9519 | 11.42 |
| 1-1/16" 2017 T4 Aluminum Round Bar | 1.075 | 12.9 |
| 1-1/8" 2017 T4 Aluminum Round Bar | 1.205 | 14.46 |
| 1-3/16" 2017 T4 Aluminum Round Bar | 1.342 | 16.1 |
| 1-1/4" 2017 T4 Aluminum Round Bar | 1.487 | 17.84 |
| 1-5/16" 2017 T4 Aluminum Round Bar | 1.64 | 19.68 |
| 1-3/8" 2017 T4 Aluminum Round Bar | 1.8 | 21.6 |
| 1-1/2" 2017 T4 Aluminum Round Bar | 2.142 | 25.7 |
| 1-5/8" 2017 T4 Aluminum Round Bar | 2.514 | 30.17 |
| 1-3/4" 2017 T4 Aluminum Round Bar | 2.915 | 34.98 |
| 2" 2017 T4 Aluminum Round Bar | 3.808 | 45.7 |
| 2-1/16" 2017 T4 Aluminum Round Bar | 4.049 | 48.59 |
| 2-1/4" 2017 T4 Aluminum Round Bar | 4.819 | 57.83 |
| 2-3/8" 2017 T4 Aluminum Round Bar | 5.369 | 64.43 |
| 3-3/8" 2017 T4 Aluminum Round Bar | 10.84 | 130.1 |
| 3-1/2" 2017 T4 Aluminum Round Bar | 11.66 | 139.9 |
| 4-1/2" 2017 T4 Aluminum Round Bar | 19.28 | 231.4 |
| 6" 2017 T4 Aluminum Round Bar | 34.27 | 411.2 |
2017 T4 Aluminum Round Bar Chemical Composition
Typical composition of 2017 aluminum includes:
- Aluminum (Al): Approximately 91.5–95.5% – the base metal providing low density and high corrosion resistance.
- Copper (Cu): About 3.5–4.5% – which imparts increased strength and hardness.
- Magnesium (Mg): Around 0.4–0.8% – contributing to the alloy’s overall strength.
- Manganese (Mn): Approximately 0.4–1.0% – aiding in improving mechanical properties and corrosion resistance.
- Additional Elements: Trace levels of silicon (Si), iron (Fe), chromium (Cr), zinc (Zn), and titanium (Ti) help finetune the properties.
2017 T4 Aluminum Round Bar Mechanical Properties
| Typical Mechanical Properties | |
| Elongation percent in 2 inches | 22 |
| Hardness Brinnel Number | 105 |
| Ultimate Shearing Strength | 38 ksi |
| Fatigue Endurance Limit1 | 20 ksi |
| Modulus of Elasticity2 | 10.6 x 104 ksi |
2017-T4 Aluminum Round Bar Applications
| Application Area | Detailed Description |
| Aerospace | 2017-T4 Aluminum Round Bar is widely used in the aerospace industry due to its high strength-to-weight ratio. It is used for manufacturing structural components such as wing beams, landing gear, and critical parts of propeller systems. Its excellent strength-to-weight ratio ensures outstanding performance when subjected to extreme loads, ensuring the safety and performance of aircraft. |
| Automotive & Transport | In the automotive and transport sectors, 2017-T4 Aluminum Round Bar is used for high-performance engine parts and load-bearing structures. The high strength and good machinability of this alloy make it ideal for manufacturing engine components, frames, and other key parts, effectively reducing weight and improving overall durability and strength. |
| Machinery | 2017-T4 Aluminum Round Bar is used in machinery for precision components and fasteners. Its stable mechanical properties and excellent machinability make it a key material in many precision devices and mechanical parts. These components typically require high strength and consistent mechanical performance to ensure the long-term reliability of machinery systems. |
| Military Equipment | 2017-T4 Aluminum Round Bar is widely used in military equipment due to its superior strength and durability. Whether used in vehicle structures, weapon system support components, or protective parts for aircraft, the high strength and impact resistance of 2017-T4 are crucial for ensuring the long-term use and reliability of military equipment. |
Comparison of 2017-T4 Aluminum with Similar Alloys
- Compared to 2024-T4: Slightly lower strength, but better machinability.
- Compared to 7075-T6: Lower strength, but more cost-effective for non-critical applications.
| Comparison Alloy | Description |
| Compared to 2024-T4 | 2017-T4 Aluminum has slightly lower strength than 2024-T4, but it offers better machinability. While 2024-T4 excels in strength, it is more difficult to machine. In contrast, 2017-T4 provides better ease of machining, making it suitable for applications that require higher precision and better processability, especially in complex shapes and sizes, resulting in higher production efficiency and lower machining costs. |
| Compared to 7075-T6 | Although 7075-T6 Aluminum has significantly higher strength than 2017-T4, 2017-T4 offers a more cost-effective option for non-critical applications. 7075-T6 is used in aerospace and military applications where extremely high strength is required. However, for applications with moderately lower strength requirements, 2017-T4 performs excellently, providing an economical alternative for components that are not critical for load-bearing, offering good strength at a more affordable cost. |
2017 T4 Aluminum Round Bar Corrosion Resistance and Protection
- Compared to 5xxx/6xxx series, it has lower corrosion resistance (due to copper content).
- Protective coatings (anodizing, painting) are required in harsh environments.
2017 T4 Aluminum Round Bar Manufacturing Characteristics
- Machining: Excellent machinability; commonly used for precision parts such as screws and fasteners.
- Welding: Challenging due to hot cracking; 4043 or 5356 filler is recommended for TIG/MIG welding when necessary.
- Forming: Best performed in the annealed state; forming is limited in T4 temper.
Cautions
- Stress corrosion cracking: Risk in high-stress, corrosive environments; proper design and coating can mitigate this risk.
- Heat treatment: Reheat treatment (e.g., to T6) can be performed if higher strength is required.
This alloy is well-suited for mixed applications requiring machinability, moderate strength, and lightweight properties, especially where welding is not the primary joining method. Please be sure to consult the material datasheet for project-specific verification.
