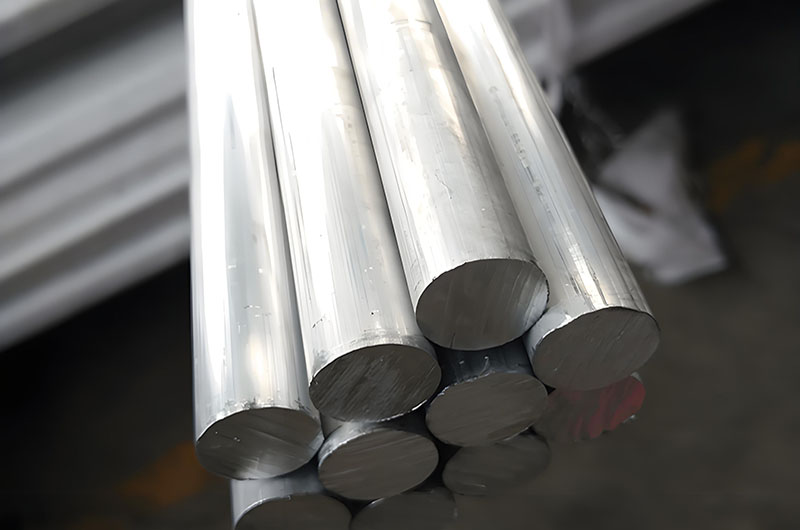

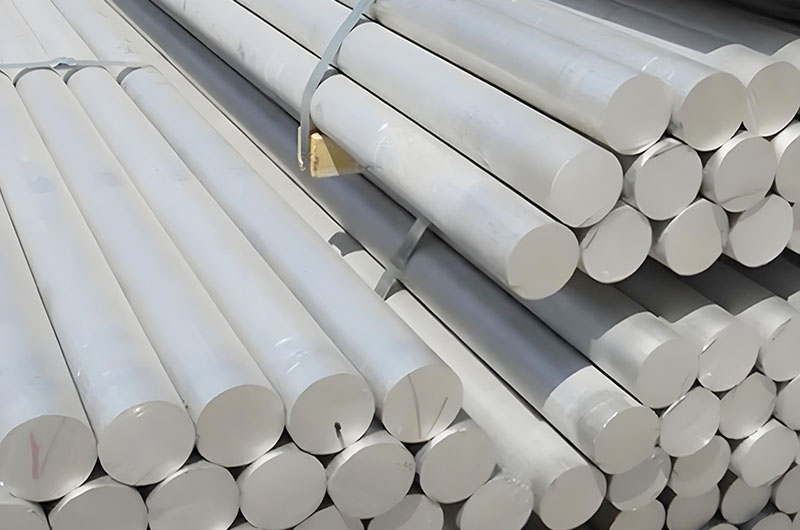

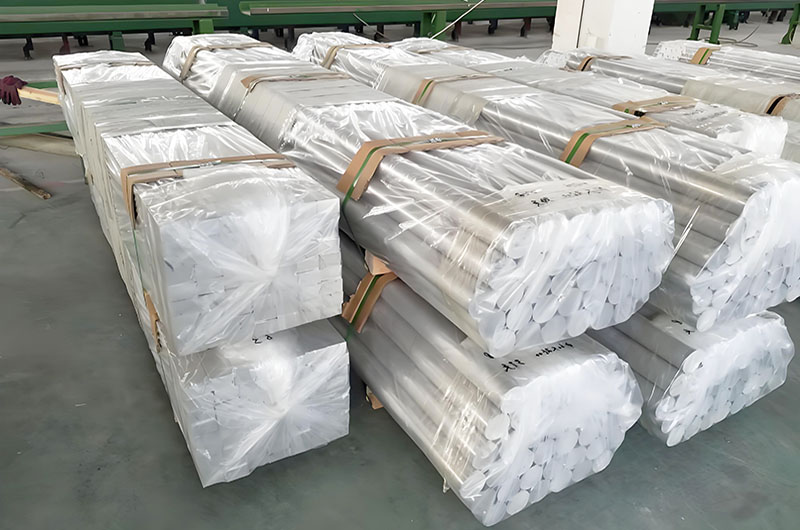

7050 T7451 Round Bar
The 7050 T7451 round bar is made from high-strength aerospace-grade aluminum alloy, combining excellent strength, toughness, and stress-corrosion cracking (SCC) resistance. This material is specially heat-treated to maintain its mechanical properties even in thicker sections, making it an ideal choice for critical structural applications.
What is 7050 T7451?
- T7451 temper combines over-aging (T74) with mechanical stress relief, optimizing SCC resistance and dimensional stability, making it suitable for critical applications.
- T7: After solution heat treatment and artificial aging, this temper enhances SCC resistance, with peak strength slightly lower than T6.
- 51: Stress relief through stretching (typically ~1-3% permanent deformation) to minimize residual stresses from the manufacturing process.
7050-T7451 round bar is a high-quality aerospace-grade aluminum alloy that achieves the best balance between strength, corrosion resistance, and machinability. Its T7451 temper ensures reliability in high-stress, corrosive environments, making it an ideal choice for critical structural applications.
HC Aluminum 7050 T7451 Round Bar Specifications
7050 T7451 Round Bar Specifications Information
| Specification Item | Details |
| Available Forms | Diameter Range: 6mm to 300mm (custom sizes available) |
| Length: Standard mill lengths (3-6 meters), cut-to-order options available | |
| Standards | AMS 4050: Aerospace material specification for 7050-T7451 |
| ASTM B221: Standard for aluminum alloy extruded bars |
Haomei Aluminum, as a professional aluminum alloy material manufacturer, provides 7050-T7451 aerospace-grade aluminum round bars that meet AMS 4050/AMS 4052 standards. We support custom diameters (Φ10mm-Φ500mm) and lengths, and provide material certificates, third-party inspection reports, and professional technical support to ensure 100% compliance with material performance standards. Direct supply from the manufacturer shortens the supply chain, ensuring delivery time and cost advantages. Contact us now for quotes and specification sheets!
Popular sizes for 7050 T7451 Round Bar
| Description | Diameter |
| 7050-T74511 Square Bar | 2" |
| 7050-T74511 Square Bar | 3" |
| 7050-T74511 Square Bar | 4" |
| 7050-T74511 Square Bar | 5" |
| 7050 T7451 Round Bar | 1" |
| 7050 T7451 Round Bar | 1.5" |
| 7050 T7451 Round Bar | 2" |
| 7050 T7451 Round Bar | 2.5" |
| 7050 T7451 Round Bar | 3" |
| 7050 T7451 Round Bar | 3.5" |
| 7050 T7451 Round Bar | 4" |
| 7050 T7451 Round Bar | 4.5" |
| 7050 T7451 Round Bar | 5" |
| 7050 T7451 Round Bar | 5.5" |
| 7050 T7451 Round Bar | 6" |
7050 T7451 Round Bar Characteristics
- High Strength and Toughness: 7050 alloy offers a high strength-to-weight ratio, and its toughness ensures reliability under high stress and fatigue conditions.
- Enhanced Corrosion Resistance: The T7451 temper design provides better stress corrosion cracking (SCC) resistance and excellent exfoliation resistance, which is particularly important for aerospace and other high-performance applications.
- Thick Sections Can Be Heat Treated and Stabilized: 7050 aluminum is less sensitive to quenching than many other high-strength alloys. This quality means that even when producing heavy or thick sections, it retains its strength and mechanical properties, which is highly beneficial for parts such as fuselage frames, bulkheads, and wing skins.
- Stress Corrosion Resistance: Due to the T7 temper, it performs better than T6.
- Machinability: Performs well when using appropriate tools (hard carbide tools are recommended).
7050 T7451 Round Bar Chemical Composition and Mechanical Properties
7050 T7451 Round Bar Chemical Composition
- Main Elements: Zinc (~6%), Magnesium (~2-2.6%), Copper (~2-2.6%), Zirconium as a grain refiner.
- Series: Part of the 7000 series of aluminum alloys, known for high strength and toughness.
Typical composition includes:
- Zinc (Zn): 5.7–6.7%
- Copper (Cu): 2.0–2.6%
- Magnesium (Mg): 1.9–2.6%
- Zirconium (Zr): 0.08–0.15%
- Small amounts of Silicon, Iron, Manganese, and Titanium.
The precise balance of these alloying elements gives 7050 its unique combination of strength, corrosion resistance, and toughness.
7050 T7451 Round Bar Mechanical Properties
- Tensile Strength: ~73 ksi
- Yield Strength: ~63 ksi
- Elongation: Approximately 7%
These values reflect optimized performance for applications where both strength and durability are critical.
7050 T7451 Round Bar Applications and Machining
7050 T7451 Round Bar Applications
- Aerospace: Wing beams, bulkheads, landing gear components.
- Military/Defense: Missile components, armored vehicles.
- High-Stress Structural Components: Shafts, hydraulic systems, robotics.
7050 T7451 Round Bar Aerospace and Structural Uses
Due to the 7050 alloy's combination of high strength, durability, and stress corrosion cracking resistance, it is widely used in aircraft structural components (such as fuselage frames, bulkheads, and wing skins). It is also used in other high-performance and heavy-duty applications where structural integrity is critical.
| Application Area | Description |
| Application in Aircraft Structural Components | 7050 T7451 Round Bar is widely used in aircraft structural components due to its excellent high strength performance, especially in key areas such as fuselage frames, bulkheads, and wing skins. Its high strength and toughness enable these components to withstand the high loads and pressure changes during flight, ensuring the stability and safety of the aircraft under extreme conditions. The high durability of the 7050 alloy makes it an indispensable material in aircraft design. |
| Use in High-Performance and Heavy-Duty Applications | 7050 T7451 Round Bar is widely used in high-performance and heavy-duty applications where structural integrity is critical. Due to its excellent stress corrosion cracking resistance and durability, it performs exceptionally well in fields requiring extremely high strength and reliability (such as aerospace, military equipment, and other high-pressure, high-load structural components). These properties provide reliable performance support for equipment and structures that must withstand long-term use and extreme environmental conditions. |
| Aerospace Applications | 7050 T7451 Round Bar's applications in the aerospace field are concentrated in critical structural components that must withstand extreme stresses and loads. Its high strength, corrosion resistance, and fatigue performance make it a key material in aircraft and spacecraft. Especially in areas that need to withstand high aerodynamic loads and temperature changes, 7050 alloy demonstrates excellent stress corrosion cracking resistance, ensuring the long lifespan and safety of aerospace vehicles. |
7050 T7451 Round Bar Manufacturing Forms
7050 material is available in various forms, including plates, extruded bars, and round bars. The round bar form is particularly suitable for machining and shaping parts that require cylindrical geometries, such as shafts or precision fittings.
7050 T7451 Round Bar is a high-quality aerospace material with the following characteristics:
- Excellent strength and toughness
- Outstanding stress corrosion cracking and exfoliation resistance
- Reliable performance even in thick sections
This makes it an ideal choice for demanding applications where long-term structural integrity and durability are non-negotiable.
